Welcome to the official website of Hebei Wanlitai Olive Pipe Co., LTD!
Hebei Wanlitai Olive Pipe Co., LTD

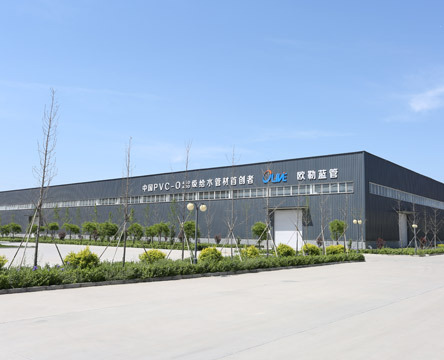

Hebei Wanlitai Olive Pipe Co., LTD (Hereinafter referred to as Olive Pipe), located in Wangdu Economic Development Zone, Baoding, Hebei Province with a registered capital of 200 million yuan, It is adjacent to G4 Beijing-Hong Kong-Macao Expressway and No. 107 National Road, so the transportation is very convenient. The company occupies 120 acres in area and has a building area of 12,000 square meters,.
The core team of the company consists of professionals with 50 years of experience in the processing of plastic pipes, and has accumulated abundant experience in product R&D, production, sales and service.
Olive Blue Pipe PVC-O 450
PVC-O pipe, also called biaxial oriented technology PVC pipe, is a new type of pressure pipe made by tensioning of the traditional PVC-U pipe in an axial direction and a hoop direction under high elastic state. It has the advantages that by biaxial tensioning of the material, the molecular chain of the material is changed from a linear structure before tensioning into a net structure after tensioning, so that the PVC-O pipe has a pressure-resistant property about twice as high as that of the PVC-U pipe, and low-temperature impact resistant property and stress cracking resistant property which are five times those of the PVC-U pipe. PVC-O pipe is a new generation of latest pressure water-conveying pipe in our country.
technology (on-line air based) for the production of Olive Blue Pipe (PVC-O) in China...
In April 2014, Olive Blue Pipe successfully passed the PVC-O 400 test of the National Test Center of ...
In April 2016, Olive Blue Pipe was tested in accordance...
On July 7, 2016, the Olive Blue Pipe-O 450 passed the on-site assessment of the production technology...
Crack Propagation
Good impact resistance to low temperature
Fatigue resistance
Excellent flexibility
Excellent response to water hammers
Olive Blue Pipes increase the hydraulic capacity
Completely corrosion-resistant
Completely water-tight
Low cost and easier installation
The most security, hyginic, eco-friendly pipes with the environment
The Olive Blue Pipe PVC-O is connected by elastic sealing rubber rings.
The Olive Blue Pipe PVC-O is connected by elastic sealing rubber rings. Once it is connected, it will not move from its emplacement of move around. The pipeline is fully watertight and can avoid leakage of piped water.
Excellent water hammer resistance.
Excellent water hammer resistance. The Olive Blue Pipe PVC-O has a thinner wall and a larger inner diameter, so the Olive Blue Pipe has a lower celerity (up to four times less, the case of ductile iron pipes) than piping systems made of other materials. When the volume and pressure of the water delivered suddenly change, the resulting water hammer is lower. Therefore, when the valve and the pump are opened or closed, the occurrence probability of a pipe explosion accident is reduced or even eliminated, which means the operation of the pipe network is much safer.
Olive Blue Pipe PVC-O significantly increases the pipeline’s hydraulic capacity.
Olive Blue Pipe PVC-O significantly increases the pipeline’s hydraulic capacity. The hoop orientation increases the internal diameter of the pipe and reduces the thickness of the pipe wall, giving the pipes a greater flow section. The internal wall of the pipe is particularly smooth, reducing load loss. The Olive Blue Pipe PVC-O has between a 15% and 35% more hydraulic capacity than conventional pipes with the same nominal outside diameter and pressure. This means that the Olive Blue Pipe carries more water but uses less energy than other kinds of pipes.
2018-04-27
2018-04-27
